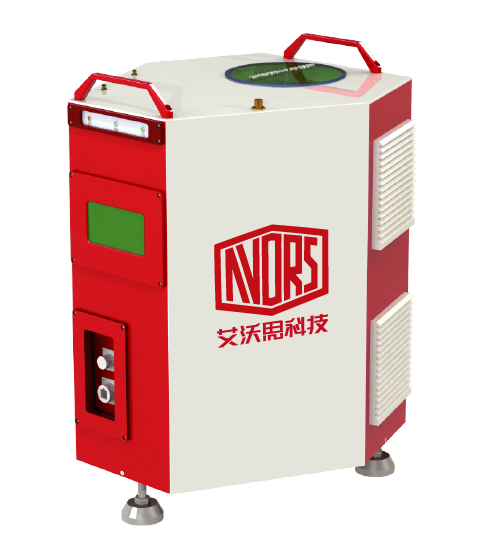

Wind Cache S3000 Wind Profile Lidar

Product No：

1033154068475633664

Category：

Products

Outline

Intention message

Product Detail

1、 Product introduction

It is used to measure the information of wind speed and direction on the vertical height of atmosphere. The laser pulse is emitted into the atmosphere, along its path, the light is scattered by aerosol, dust and water drop. The backscattered signal carries the Doppler frequency shift information, which is received by the optical system. The received echo signal is mixed with the reference light, and the Doppler frequency shift is extracted by collecting the signal, then Fourier transform, so that the optical signal is digitized and processed To the Doppler shift caused by aerosols, so as to obtain wind speed.

introduction

2、 Product application

✔ meteorological field

✔ monitoring of pollution diffusion conditions

✔ wind field assessment

Weather guarantee for aerospace test

3、 Technical features

● 7 & times; 24h continuous scanning

● IP65 protection grade, all-weather outdoor operation

● intelligent remote sensing monitoring, remote control

High safety, laser human eye safety certification

● attitude correction function, which can realize on-board and shipboard dynamic monitoring

4、 Monitoring results

introduction

5、 Technical parameters

	Wind Cache S3000
Technical indicators	Parameters
Detection principle	Principle of Doppler pulse laser detection
Detection distance	50m~3000m
Wind speed range	0m/s~70m/s
Power consumption	≦85W
Enclosure protection class	IP65
